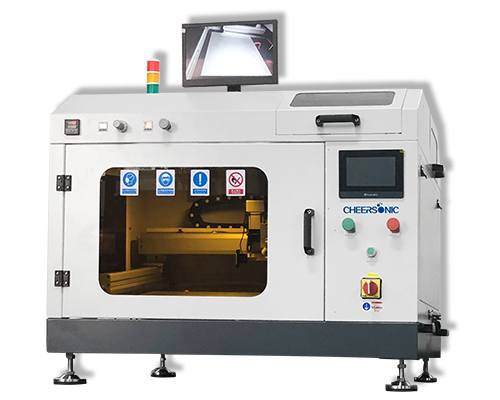

UAM4000L-Advanced Precision Coater
Description
UAM4000L-Advanced ultrasonic intelligent coating equipment has unique high-tech functions, which can realize more uniform, thinner and more controllable film coating, and can always pay attention to the coating process through the teach pendant. The equipment integrates multiple systems, such as ultrasonic, carrier gas, heating table, vacuum adsorption and exhaust gas emission, laser teaching system, can be applied to a full range of ultrasonic nozzles, suitable for small or medium-area thin film preparation, and suitable for For spray pyrolysis applications, this equipment is widely used in the field of fine coating preparation. Mainly used in fuel cell proton exchange membrane spraying, thin film solar cells, nano-modified material spraying, glass coating and other industries.
Features
• Uniform and controllable coating
• Liquid utilization rate >95%
• Automatic nozzle cleaning system
• Desktop design is easy to move
• Clean, precise spray patterns that are easily shaped for various applications.
• Highly controllable spray that produces reliable, consistent results.
• Non-clogging atomized spray that does not deviate.
• Ultra-low flow rate capabilities, intermittent or continuous.
• Ultrasonic vibrations continuously break up agglomerated particles.
Basic Specifications
• Dimension: 1200L*950W*900H mm
• Spraying Range*: 300 x 300 mm
*Note: Can be customized according to needs
• Power Requirements: 120V, 220V, +/-10%, 50-60Hz
• Ultrasonic nozzles: Cheersonic can be equipped with a variety of nozzles
• Control: HMI
• Heating/vacuum plate
• Laser teaching system
• Automatic positioning system
• Certificate: CE, FDA
