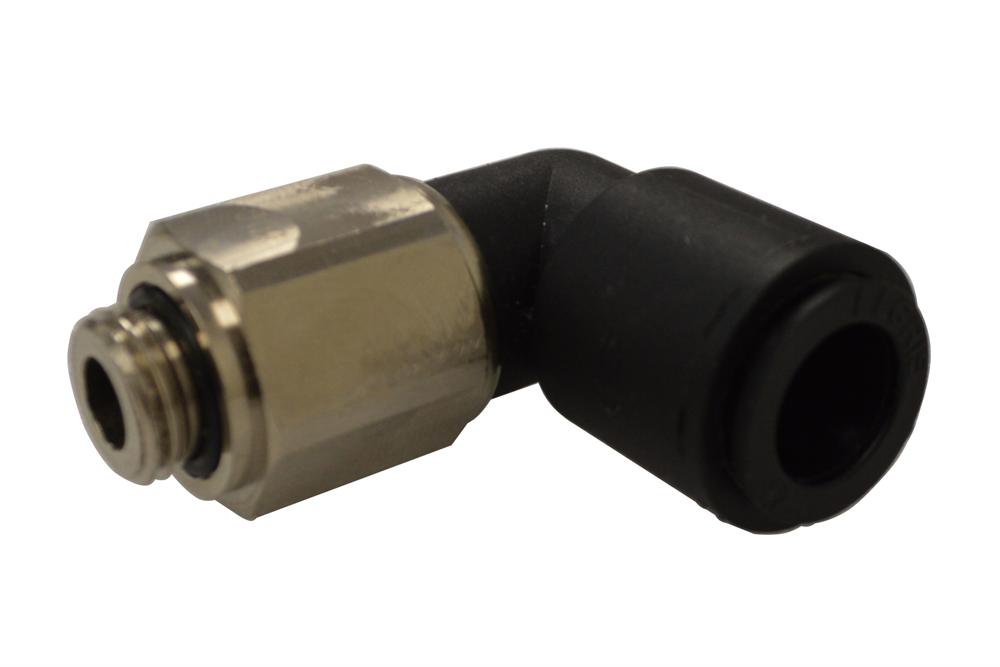

Swivel Elbow Fitting, 1/4" BSPP x 6mm or 12mm Tube (Upto 290 psi). EQ-IS-1406, EQ-IS-1412

The connection of tubing at a 90° angle to a threaded port. Height dimensions are designed to pass over an elbow.

Specifications	Solid construction and aesthetic for a better connection Precoated thread ensuring direct sealing Full air flow Individual unit quality control and dating in order to guarantee quality and traceability
Maximum working pressure	20 bar /2 MPa /290 psi
Working temperature	-20 to 80 °C
Vacuum capability	755 mm Hg
Body	TECHNICAL POLYMER
Sub-base	NICKEL PLATED BRASS
'O'-rings	NBR
Gripping ring	STAINLESS STEEL
Surface treatmene	PTFE
Application case for  4" Two Zone Rotary CVD Tube Furnace @1200C Max. - OTF-1200X-4-R-II-UL
