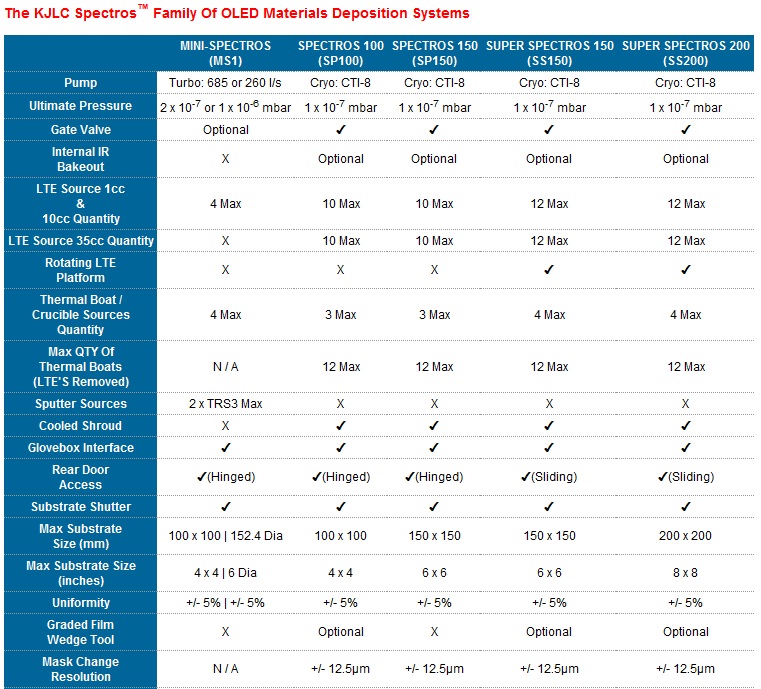

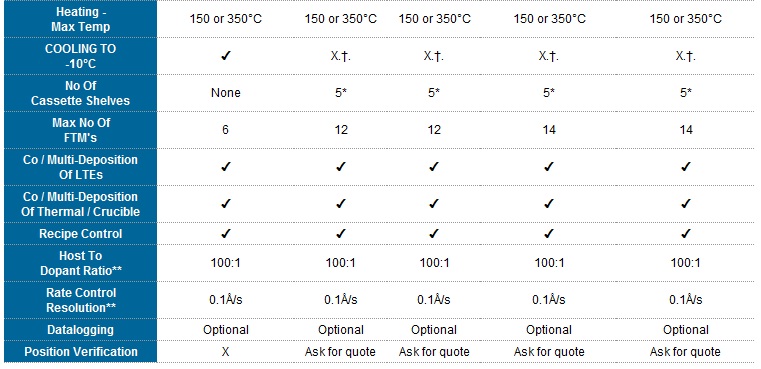

SPECTROS Overview

Overview

The Kurt J. Lesker SPECTROS family of Organic Materials Deposition Equipment

• Mini-SPECTROS^™
• SPECTROS^™ 100/150
• Super-SPECTROS^™ 150/200

The Organic Materials Deposition System Solution with Glovebox

• Standard 2 and 4 glove Glovebox systems available with Spin Coater, Encapsulation and Solar Simulator (as required)

Standard SPECTROS^™ Features

• Front pneumatically locking sliding door for easy source and substrate access
• Motorised substrate rotation
• Full computer control with recipe functions
• Optional Datalogging
• 1 x 10^-7 mbar base pressure
• Pneumatic source and substrate shutters
• Uniformity +/- 5% for all sources
• Co/Multi-Deposition of Organic Sources
• Maximum Host to Dopant ratio of 100:1 for organic sources
• Rate Control Resolution 0.1 A/sec
• Optional Co-Deposition of Thermal Sources
• Optional thermocouple monitoring of thermal sources
• Ultra clean vacuum construction for optimum film purity
• Glove Box compatible adapter flange
• Glovebox compatible load locks available with multi sample cassettes

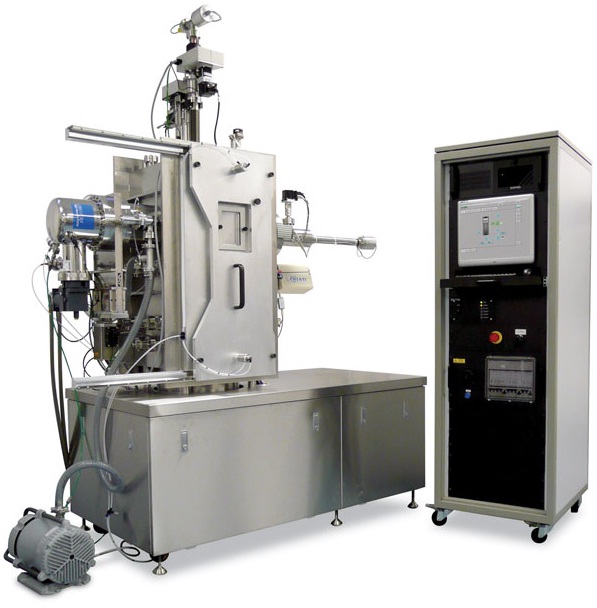

Lesker SPECTROS Overview
