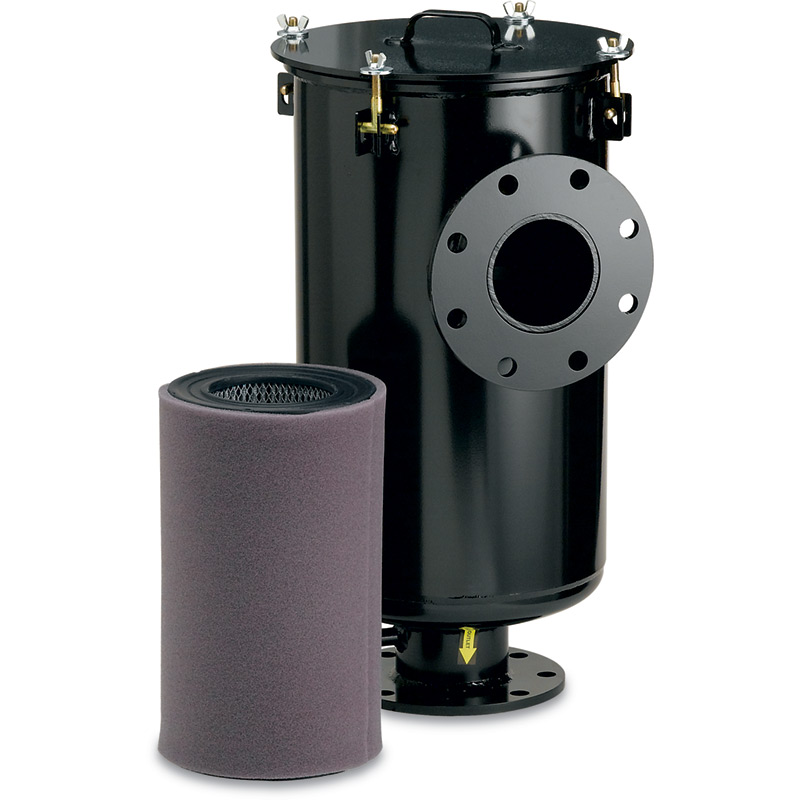

Polyester Foreline Dust Filters (ASA Flanged)

Offers a 99+% removal efficiency standard to 5 microns on polyester media.

Specifications

• Vacuum level is typically 1 x 10^-3 Torr (1.3 x 10^-3 mbar)
• Features low pressure drop with a positive sealing o-ring system
• Temperature range: -15°F (-26°C) to 220°F (104°C)

Features

• Inlet gas load enters the canister above the element for maximum element usage
• All-steel construction features a baked enamel finish with heavy-duty T-bolts to ensure structural integrity and easy maintenance
• Applications include bag house systems, factory automation, food processing, glass and ceramic processes, medical, vacuum furnaces and packaging, vacuum pumps (rotary vane, screw compressors, and piston pumps), and central vacuum systems

NOTE:

• One 5 micron Polyester element included
• Both inlet and outlet flanges are flat (smooth) ASA flanges. Order appropriate mounting hardware (below).
• Please call us to order element types not listed in the ordering table.
