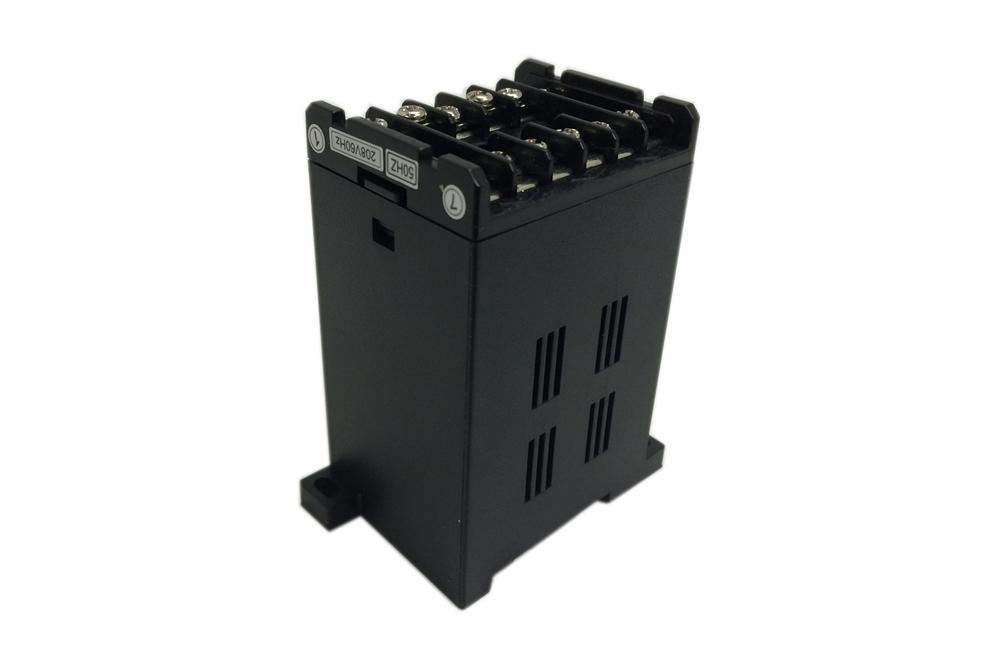

Phase Angle Trigger Module,MTI-JHB-C1/C2

The Phase Angle Trigger Module MTI-JHB-C1 and MTI-JHB-C2 can be used in high-precision control systems that require smooth and continuous adjustments on voltage/current. The modules integrate the technology of synchronousness and so synchronous transformer is not required.

• Replacement Part for Existing Customers Only
• Replacement Parts sold are not refundable, returnable or exchangeable.

Specification:

Item Category	MTI-JHB-C2-AC18V  （50/60 HZ General Purpose ） (New UL furnace)	MTI-JHB-C1-50HZ or MTI-JHB-C1-60HZ 50Hz or 60Hz (Please select in the options bar)	MTI-JHB-C2-50HZ or MTI-JHB-C2-60HZ 50Hz or 60Hz (Please select in the options bar)
Connection
		When Input 0-10 Ma, the resistance: 500 ohm
Control voltage:		0-5V
Supply Voltage	AC 18V	65~264V	65~264V
For old model furnace, it is recommended to buy with Option SCR	STT Series SCR (Silicon-controlled rectifier) - FA-STT-SCR (For UL Version Model Furnace)	SCR for C1 Trigger must be changed with SCR (For old Version Model Furnace)	MTC 110A-16 SCR (Silicon Controlled Rectifier) FA-MTC110-16
Troubleshooting		Problem: Furnace No longer heats up, front panel indicating power to the elements no longer lights up.	Solution:  Please always check input power, heating elements, the temperature controller output voltage and the AC contractor suction first.
		Problem: The LED on the box does not light up when the program is being run.	Solution: Replace the Phase Angle Trigger Module
Purchase Notes:	Please make sure the specification of the product meets your need before making a purchase. Since Nov 10, 2016, we no longer accept return delivery. Products are not refundable, not exchangeable, nor covered under the warranty (Consumables). We apologize for the inconvenience. Please check the package for damages before accepting the delivery. For more information or damage upon arrival please contact us.
Frequency	Please select the Frequency menu
Dimension	87mm x 55mm x 45mm
Compliance	CE
