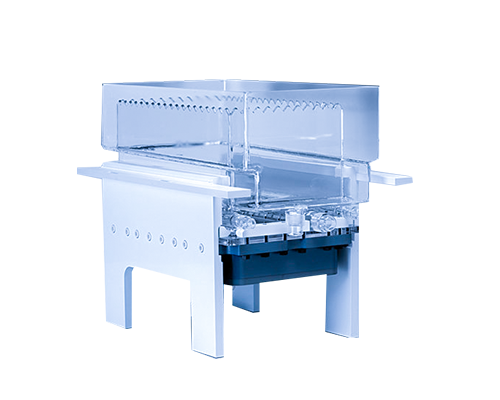

MSP1000 Batch Type Megasonic Plate

The application in microelectronics production greatly reduces the amount of chemicals and ultrapure water, and reduces the residence time of the wafer in the chemical solution. Compared with the traditional cleaning method and the ultrasonic cleaning system, the damage to the substrate features is minimal. Using the liquid flow generated by the megahertz wave to realize the cleaning process has the ability to remove deep sub-micron particles, which can meet the requirements of the 0.1-micron line width technology for the cleaning process, and has been widely used in the cleaning process of silicon-based chips. So far, the megasonic cleaning method has become the most widely used and effective method in polishing wafer cleaning. Generally, the particle size suitable for removal by megasonic cleaning is 0.1~0.3 μm, and the particle size suitable for removal by ultrasonic cleaning is above 0.4 μm. The effect of megasonic cleaning is gentler. Therefore, an appropriate vibration frequency should be selected according to the size of the particles to be removed and the impact force that the device on the wafer surface can withstand.
