Hi-Speed Spin Coater (10K rpm & 5" max) w/ Optional Heating or UV Cover up to 200oC- VTC-100PA

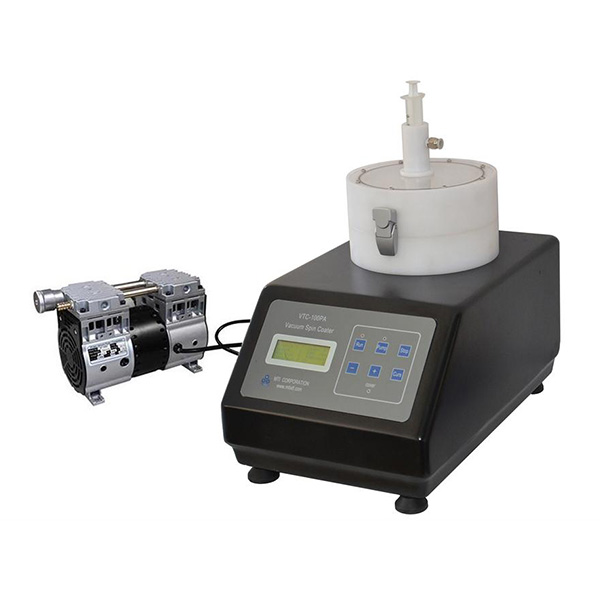

VTC-100PA is a  tabletop  spin coater up to 5" diameter at Max. 10000 rpm. The spin head actuator is a precision DC servo motor with accurate speed and acceleration control. The substrate can be held by vacuum (for thinner objects). The device has a user-friendly keyboard and LCD display for programming various parameters up to 12 programs, 6 segments. Spin duration, spin speed, and acceleration can be programmed from the front panel. All components in the device are corrosion protected to make it cleanroom compatible.  This spin coaster can be used inside the glovebox with Ar gas.

SPECIFICATIONS:

Main Features	500 ~ 10000 RPM spinning speed programmable Accept substrate from 5 mm to 5"  PP chamber for anti-corrosive operation. One gas inlet port on top of the cover can fill inert gas during coating One 20ml Plastic Syringe is included Suitable using Ar gas (vacuum pump must be outside glovebox) The safety interlock is integrated into the lid
Vacuum Chuck	Chamber size: 150 mm diameter  2 sets of PP anti-corrosive vacuum chucks with different sizes (O-ring ID Φ44mm, Φ10mm), which can hold substrate from 5 mm to  5" Dia.  ( see pic below )  Click the picture below right to watch the demo video for how to use a 9mm vacuum chuck hold 5mm sample.
Vacuum Pump	One 120L/min Oilless Vacuum Pump is included in the standard package, please click the picture below for specification details. (Pic.1) Vacuum-grade rubber pipe is included for immediate use. For using in Ar glove box, feedthrough is required for connecting the spin coater to the vacuum pump outside of the glovebox. The feedthrough is NOT included in the standard package, please contact us for more information.
Programmable Control	The digital control panel can store 12 programs and each program has 6 segments programmable for  speeds, acceleration, and spin duration (please click the picture left to see typical program settings) Speed:  500 rpm - 10000 rpm programmable Duration up to 60 seconds for each segment Acceleration: 100 - 2000 rpm / sec adjustable Accuracy:   < 5%
Input Power	AC 220V (Please email us for AC 110V Version) 1000 W total for the oilless pump and spin cater 24VDC high-speed motor
Gas Inlet	6mm diameter gas inlet port allows customers to fill desired gas into the chamber, which can make coating under variable gas flow environment.
Liquid Injection	Standard Package:  20ml plastic syringe with needle Option 1:  Precision Electronic Single Channel Pipette: 20 - 200uL Option 2:  Heatable glass syringe with temp. controller, up to 200C
Optional	Option 1: PE Heating cover with a digital single-point PID temperature controller up to 120°C(<10 minutes) is available upon request at extra cost. The drying process solidifies the as-coated film in less than a few minutes. Click the demo video & picture below for detail.  Option 3:Both PTFE Heating cover + 10mm dia. PTFE vacuum chuck setis capable of high temperature up to 200°C (<10 minutes). A 30-segment programmable PID temperature controller is used for this option. (44mm dia. vacuum chuck is not included) Option 4: UV LED lights and controller for curing and polymerization.  (New)         P1       P2    P3    (Demo video for heatable cover)
Product Dimensions	450mm Depth ×280mm W ×340mm H
Net Weight	20 kg
Operation Manual & Video	(video for heatable cover)
Application Notes	Please clicks here to review how to connect and use the heatable syringe. In order to achieve optimal coating quality, please consider cleaning substrates by a plasma cleaner (click the picture below for more details) prior to coating. This will significantly reduce the surface tension on the substrates. The EQ-OFDP-2 is a tiny silent powerful diaphragm pump, which is made in Germany and provides an excellent vacuum performance, now it's only $1455 for you to have this pump. Cleaning instruction for the spin coaters.
Warranty & Compliance	One year limited with lifetime support Rusting and damage due to improper storage condition or maintenance are not covered by warranty CE Certified NRTL or CSA certification is available at an extra cost.
Warnings	Do not overflush the water bowl/base with any kind of liquid. Excess liquid will leak into the motor shaft and cause damage. Please use fabric cloth to wipe out the residues that remain in the bow/base. Please turn on the water outlet when flushing the water bowl/base to avoid liquid overflowing during the operation. For more details about the cleaning procedure, please review the cleaning instruction for the spin coaters.
Shipping Dimensions	40"(L) x 30"(W) x 30"(H)
Shipping Weight	46 kg (100 lbs)
