Description

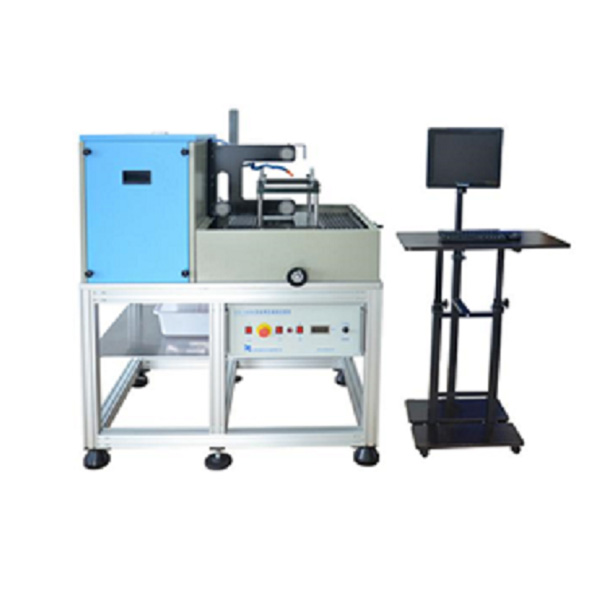

STX-100QX is a diamond wire curve cutting machine, which is designed for cutting irregular shapes sample of non-conductive materials, such as ceramics, polymer composite. The machine is controlled by the included PC and software. As long as inputting 2D drawing, it will cut the sample automatically.
SPECIFICATIONS:
| Power | - AC220V+/- 10%, 50/60Hz
- 500W
- AC110V version is available via a 1000W transformer
|
| Cutting Parameters | - X-axis slide travel: 0 - 200mm
- Y-axis slide travel: 0 - 280mm
- Max. cutting depth: 50 mm
- Travel resolution: 0.01mm
- X / Y axis travel speed: 0.06-6mm/min
- Diamond wire moving speed: 15m/s max.
- Diamond wire length: 0.35mm dia. x 230 meters Length (one roll diamond wire included)
- Diamond wire tension: 0.1 Mpa - 0.5 MPa via compressive pump
- Sample holding platform: 220mm x 320mm
- Max. ample size to cut: 200mm x 280mm x 50mm
|
Control PC and
Software | - One brand new laptop is included with pre-installed software
- The engineering drawing of the sample can be made via the software on the PC
- Cutting parameters can be set up in the PC, and push button to operate automatically
|
Coolant Pump &
Air pump | - One water pump is included for recirculating coolant and cooling cutting wire during cutting
- One compressive air pump is included to control diamond wire tension
|
| The materials for cutting | - The machine can cut almost every type of material as long as its hardness less than diamond
- Especially good at cutting non-conductive material, which EDM can not be cut
- It also can cut metallic material at low speed than EDM
- Can cut any curve and straight line
|
| Dimension & Weight | - L 1170mm x W 850mm x H 1600mm
- 325 kg
|
| Compliance | - CE certified
- NRTL or CSA certification is available upon request at the extra cost
|
| Demo Video |  |
| Application Note | - Different material requires different cutting parameters
- It is the customer's responsibility to find the best cutting parameter.
- Diamond wire is consumable. Usually, service life is less than 30 hours at 1- 2 mm/minute cutting speed. Please prepare more spare diamond wire
- Online training is available upon request at a reasonable cost
|
