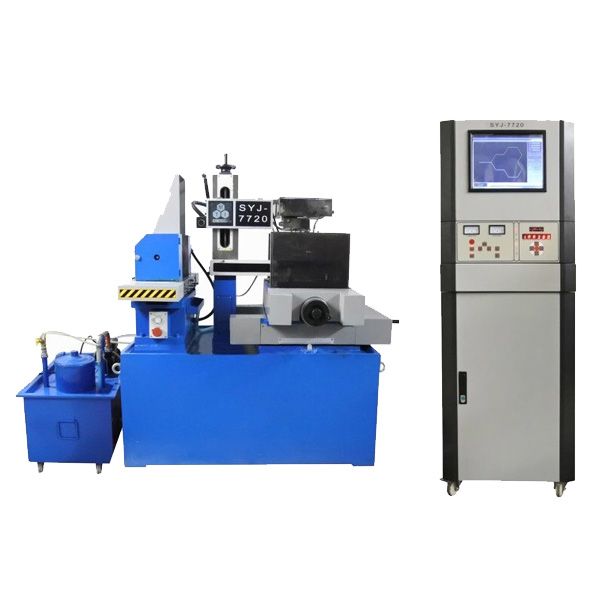

Compact High Speed Wire Cut EDM Machine with PC Control - SYJ-7720

SYJ-7712 and  SYJ-7712 are the compact wire cut electrical discharging machines (EDM), which is designed for research labs and features with

• Highly accurate machining
• The high performance of machining complex parts
• Possible to making any tapers
• Any electric conductive material can be cut regardless of hardness
• PC controlled via software.
• Lower the cost for the lab to make a complex metallic sample

SPECIFICATIONS:

Model	UNIT	SYJ-7712	SYJ-7720
Working Table Size (L × W × H)	mm	200 x270	270 x 420
Stroke (X/Y) (L × W)	mm	120x160	250 x 200
Max. Z-Axis Stroke	mm	100	300
Control Panel		A desktop computer installed with the software	Separated control unit with software
Cutting Angle (°/80mm)	°/80mm	±3°
Max. Cutting Speed	mm²/min	100
Optimum Roughness	mm	≤2.5 (Medium speed ≤ 1.0)
Dia. of Molybdenum Wire	mm	0.1-0.3 (0.18 is recommend)  One roll of 0.18 mm Dia. moly wire is included
Molybdenum Wire Moving Speed	m/s	11.5
Dielectric Fluid		One container of dielectric paste is included. Please dilute it per the instruction.
Process Accuracy	mm	0.01-0.015
Feeding Pulse Equivalent	mm	0.001
Power Supply		208 - 240VAC, single phase, 50/60Hz <2 kW 110VAC is available by using a 3000W transformer (110V- 220V)
Power Consumption	kw	<2.0
Max. Workpiece Weight	kg		100
Weight	kg	600	630
Dimension (L × W × H)	mm	900 x 700 x 1200	1350 x 950 x 1400
Shipping Weight & Dimensions	Pallet #1:1600 lbs, 54" x 40" x 65" Pallet #2: 600 lbs, 47" x 39" x 80" Pallet #3: 300 lbs, 48" x 40" x 36
Video
Safety Note	This EDM contains moving parts (sample stage and wire spooler) and live parts under high-frequency low voltage (wire holder) which are exposed to the outside during the normal operation. MTI provides limited protection to ensure that the machine will work properly. However, the end-user must be responsible to perform the risk assessment and select the suitable guards of the workplace to prevent any person or object from accessing the working area improperly. Here is an example of the safety guard.
