CF Flanged Exotic Glass Viewports Features:

• Built from the highest-quality materials to UHV standards
• Compatible with vacuum systems capable of reaching UHV levels
• Viewports should be sealed with fully annealed copper gaskets to reduce induced strain
• If the process deposits material, Kurt J.Lesker / Premier Solutions strongly recommend a viewport shutter because deposits can damage and impair the optical properties of the lens.

Exotic Glass Features:

• Leak Rate <2x10^-10 atm cc/sec He
• Parallelism <3 Arc Minutes
• 304L Stainless Steel Flange
• λ/4 @ 632nm Transmitted Wavefront

NOTE: All viewports are fragile and should be handled and mounted with extreme caution. CF flanged viewports require a fully annealed copper gasket. Never scratch the viewing area-a weakened viewport may implode (or explode under wrong conditions). Make sure the "glass" chosen has a reasonable transmission at the wavelengths of interest. And remember, what is not transmitted may be reflected or absorbed.

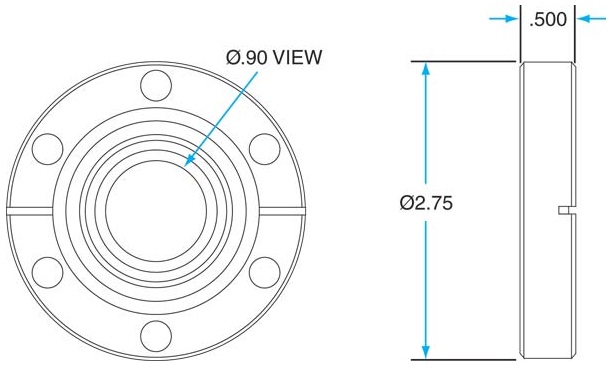

Dimensional Drawings

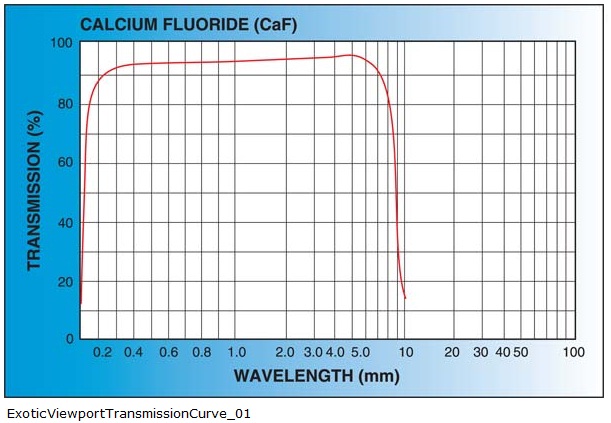

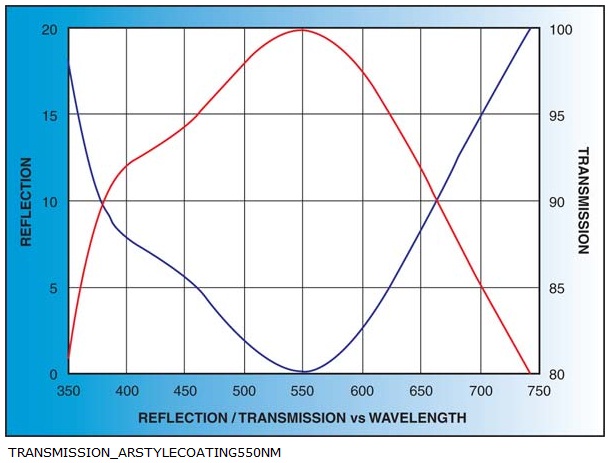

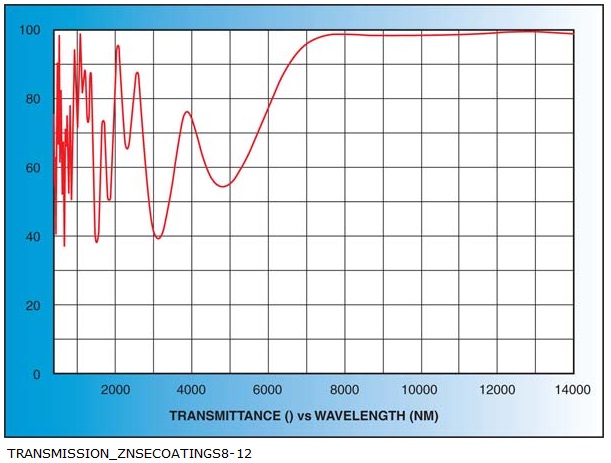

Charts
