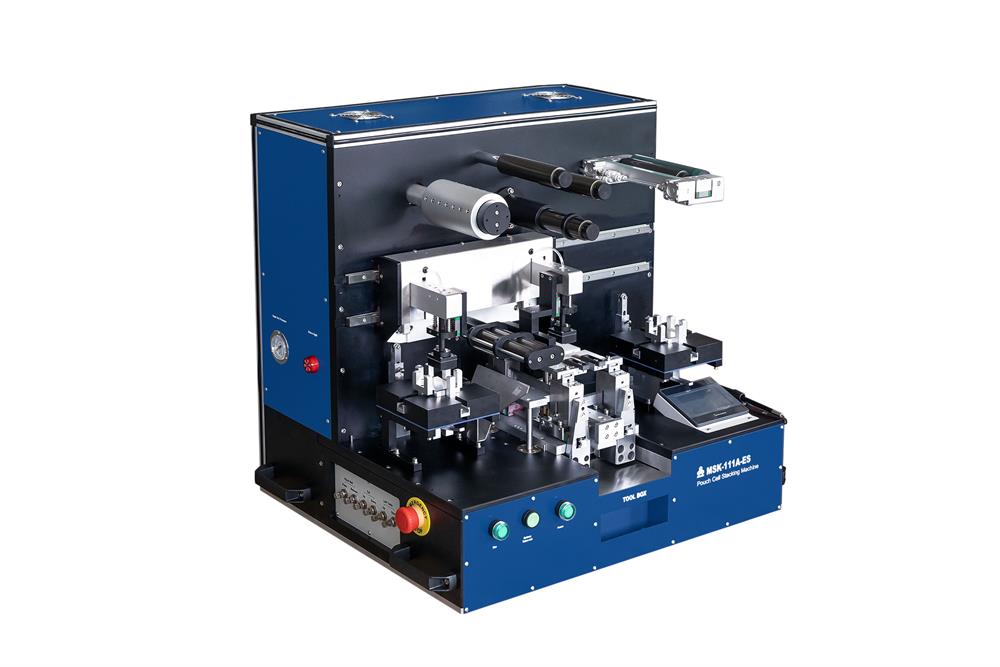

Bench-Top Automatic Pouch Cell Stacking Machine up to 110Lx100 W (mm) - MSK-111A-ES

MSK-111A-ES is a bench-top high precision automatic stacking machine with Argon glove box compatibility to ensure the pouch cell electrode stacking that is required to be done in the protective gas atmosphere. In its "Z" fashion stacking method, Anode and Cathode electrodes are alternatively stacked with the separator film in between.

• Advanced Features:
  • Compatible for stacking for both regular electrodes and pure Lithium anode electrodes in the Ar glove box or dry room.
  • PLC Touch Screen Control allows easy control
  • Auto electrode pick-up & stacking via vacuum manipulators
  • Auto separator cutting and feeding for each battery.
  • Adjustable mechanical electrode fixture for accurate electrode positioning
  • Auto tension-controlled rotor for separator feeding
  • One set of 80x50mm stocking die fixtures is included for immediate use.

SPECIFICATIONS:

Working Voltage	AC220V 50/60Hz AC 110V version is available with a transformer.
Power	400 W
Stackable Size of electrode	Standard stacking electrode size: 62 mm Length x 46 Width (Current Corrector Not Included) 110 mm Length x100 mm Width  (Max. Current Corrector Not Included)
Stackable Layers	Up to 100 layers
Stacking Speed	6 - 8 seconds / layer
Max. Electrode Thickness	Piled up thickness < 20 mm
Max Current Corrector Length	Max. 15 mm
Aligning Accuracy	±0.3 mm for stacked electrodes
Acceptable Separator Roll Size	I.D>3'' (76mm) O.D<9.8'' (250mm) Please choose the corresponding separator size according to the electrode size A roll of separator with width of 60 mm will be provided for expeirmental trial
Stacking Fixture	One set of 62 x 46 mm stacking die fixtures is included for immediate use. If you need different size electrode stacking, please inform us before order.  We will make it for you at extra cost. Allowable customization size: Max.  110mm x 100mm; Min.  40 mm x 30 mm; Each size cell needs one mold.
Operation in Glove Box	The Pouch Cell Stacking Machine can be operated in the glove box in either N2 and Ar gas
Vacuum Pump	An Oilless Vacuum pump (28L/min, 140W) is built-in to enable the vacuum suction function of the electrode pick-up/stacking manipulator.
Suggested Air Pressure	0.5 - 0.8 MPa (Air compressor is not included in the standard package. Please click here to order) Attention: If a gas cylinder is used instead of an air compressor(pic2), a two-stage pressure regulator(pic1) must be installed on the gas cylinder to limit the pressure within the required working range for safe operation. Click here to learn the installation of a gas regulator.   pic1                pic2
Transparent Cover	The transparent cover is optional at an extra cost for the NRTL Certificate
Product Dimensions	790 mm L x 610 mm W  x 720 mm H
Net Weight	~ 250 kg ~ 550 lbs
Shipping Weight & Dimensions	430 lbs 47"x39"x38"
Compliance	CE Certified NRTL certificate is available upon request at extra cost
Warranty	One year limited warranty with lifetime support Rusting and damage due to improper storage condition or maintenance is not covered by a warranty
Operation Manual & Video
Application Notes	This machine can be put in a glovebox and operated in Ar gas. For the Lithium-sulfur research, please send the request for the special technique to do the pure lithium foil stacking. MTI Supplies ready-to-use Cathode & Anode Electrodes and Laminated Aluminum Pouch for your research. Please click the picture below for product details. MTI Supplies Nylon-made Splittable Pouch Cell Casing for Battery R&D, please click the picture below for more details.
