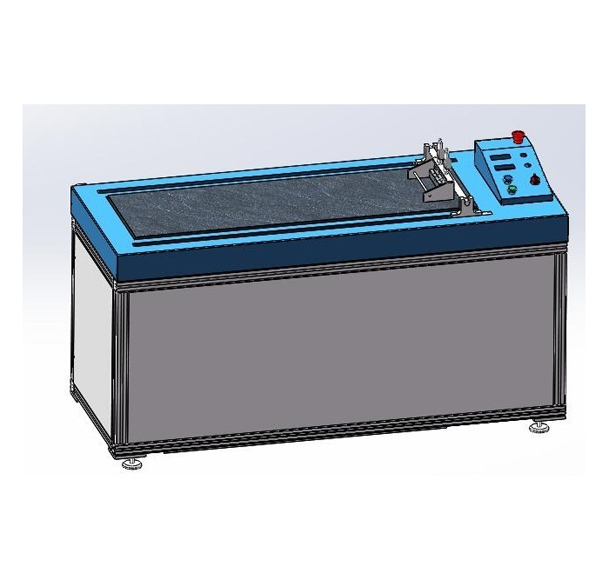

Automatic Film Coater with 22"W x 44"L Marble Bed with 500mm Adjustable Doctor Blade - MSK-AFA-L

MSK-AFA-L is a Large Automatic Film Coater designed for producing films up to 500 mm Width x 1000 mm length.     One pair of digital micrometers is included for adjusting film thickness up to 5 mm.  It has a unique driving system to produce a smooth coating on all types of materials SPECIFICATIONS:

Power	INPUT: 24VDC UL/CSA listed 100-240VAC IN - 24VDC OUT power adapter is included. 350W
Traverse Speed	500 - 5000 mm / minute Accuracy: 10mm/sec
Stroke Length	10 - 1000 mm adjustable according to customer request
Platform	The platform is made of precision marble  Surface flatness is < +/- 2 microns Area:    550 mm width x 1100 mm Length One tightens fixture built-in right side for fixing substrate Magnetic clampings are installed on two sides of the stage. One tray is included in the left end to collect The residual slurry The platform is installed on the mobile cart with the wheel of height adjustable.
Film Applicator \	One doctor blade Film Applicator is included Standard Width 500 mm Coating thickness accuracy:  +/-  5 microns or 10% of film thickness Slot die is available in different sizes (optional) by extra cost.)
Product Dimensions	1450mm× 580mm× 1000 mm (L×W×H)
Compliance	CE certified NRTL or CSA certificate is available upon request at the extra cost.
Warranty	One Year limited warranty with lifetime support
Net Weight	280 kg
Operation Manual
Shipping Weight	350 Kg
