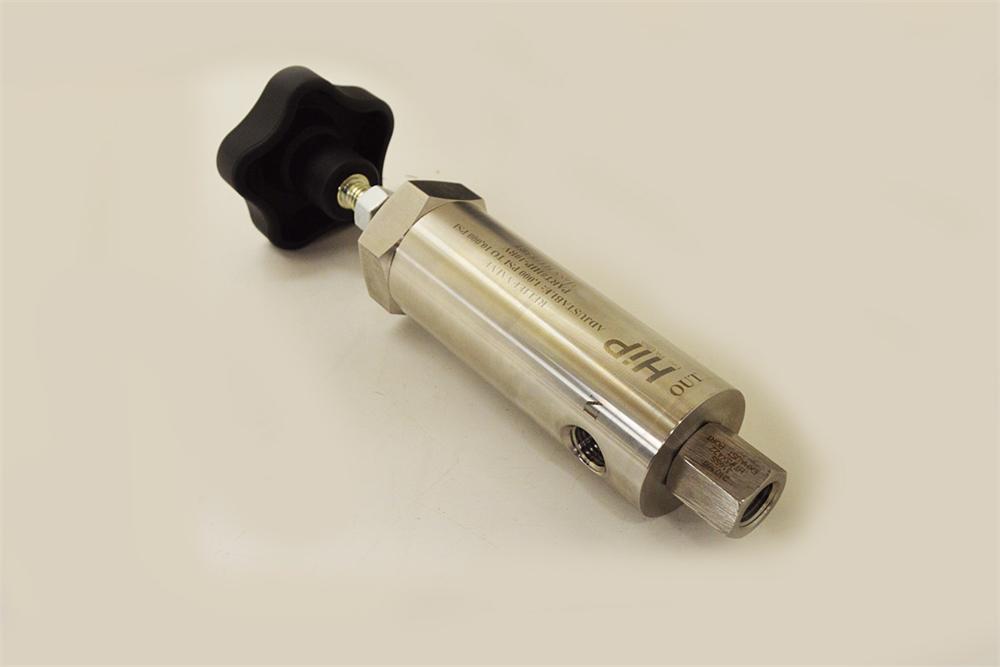

Adjustable High Pressure Relief Valve 1000 - 10,000 PSI (7 - 70 Mpa) - HIP-RV10-LD

Relief valves are offered in pressure ranges: 1,000 through 10,000 psi. (7 Mpa --70 Mpa) adjustable and can be used for MTI high-pressure furnaces.

• Standard materials include 316 stainless steel bodies and glands. Stand and O-ring material is EPDM, with Teflon packing and nylon seats
• Inlet connections 1/4" NPT-HIP-10RV; HF4-HIP-20RV
• Outlet connections are 1/4" NPT
• These valves are not recommended for use below 1,000 psi and are readily adjustable in the field
• 1000 - 20,000 PSI adjust relief valve is available upon request
• Made in the USA
• Please click the drawing below to see the dimensions
