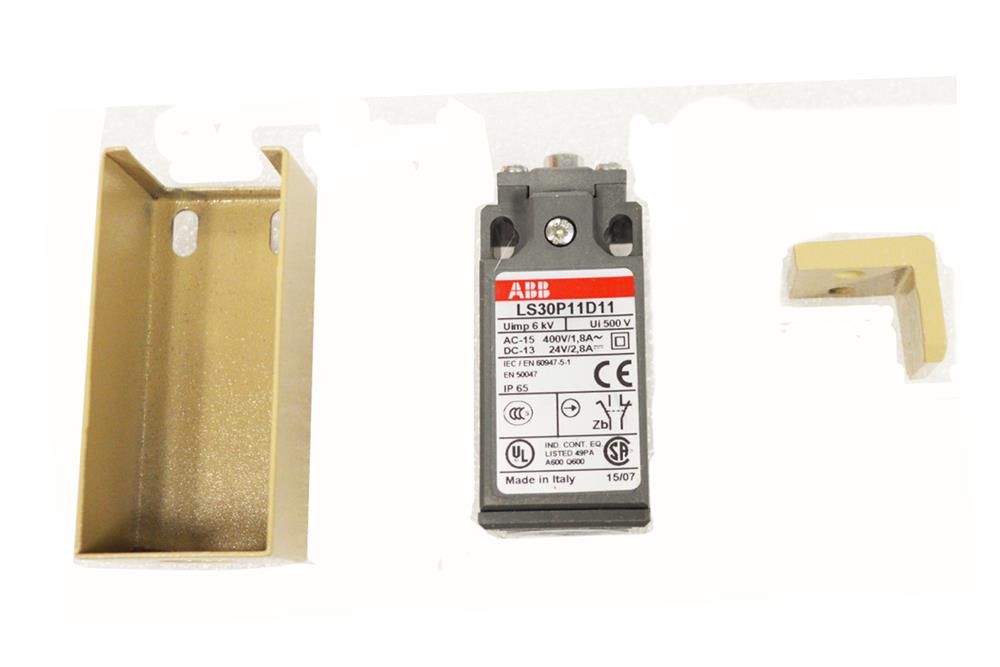

ABB Locking Interlock Switch, FA-ABB-LS30P11D11
Description
ABB Locking Interlock Switch is designed to guard the safety of MTI furnace, cut the power if open the lid during furnace heating process.
Specification:
| ItemCategory | Limit Switch | |||||||
| Brand | ABB | |||||||
| Product Net Width | 30 mm | |||||||
| Net weight | 0.070 kg | |||||||
| Compliance | UL | |||||||
Rated Insulation Voltage (Ui): | acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 690 V acc. to UL/CSA 600 V | |||||||
Rated Operational Current AC-15 (Ie): | (130 V) 5.5 A (230 V) 3.1 A (240 V) 3 A (24 V) 10 A (400 V) 1.8 A | |||||||
Rated Operational Current DC-13 (Ie): | (110 V) 0.6 / 66 A (24 V) 2.8 / 67.2 A (250 V) 0.27 / 67.5 A | |||||||
Resistance Between Contacts: | 25 mΩ | |||||||
| FAQ | Suggest moving the part inside the interlock switch upwards more to solve malfunction. | |||||||
