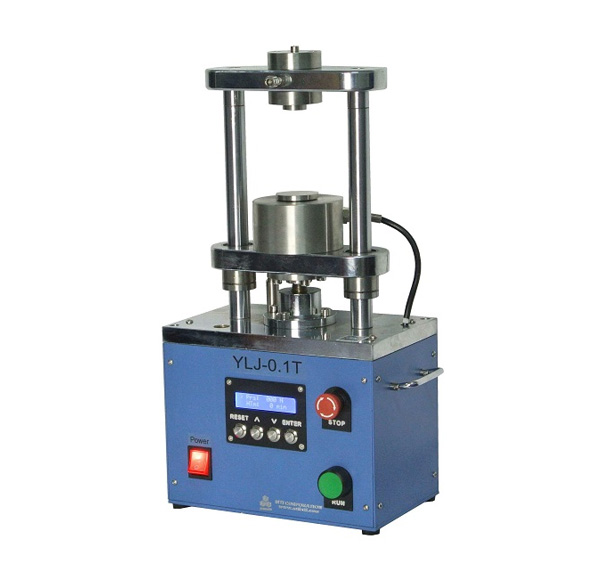

50 - 450N Precision Electric Press with ± 5N Accuracy - YLJ-01TA

Name: 50 - 450N Precision Electric Press with ± 5N Accuracy - YLJ-01TA
Brand: Premier Solutions Pte. Ltd

0.0/5 rating (0 votes)

Description

YLJ-01 TA is a compact & precision electric press or jig with the digital pressure gauge and load cell up to max.450N force (45Kg ). It is designed for compressing small pellets （《1/4“ Dia. ) in glove-box for ceramic research and solid-state battery .

SPECIFICATIONS:

Power	NRTL & CSA certified 110 - 240V AC (50/60Hz) power adapter for universal use 24V DC motor with reducing gear, 15W, which is suitable for using under Ar gas
Pressure	A built-in load cell with a digital display for pressure measurement and control Pressure adjustment range: 50 N - 450N ( 5kg - 45Kg ） Digital pressure control with +/- 5N accuracy Pressing time: 2- 9999 min programmable
Working Space	Working plate: φ40mm Open height: 76mm Max. Stroke: 40mm
Product Dimensions	225L x 150W x 435H (mm)
Compliance	CE approval NRTL or CSA (UL 1450) is available upon request at extra cost. Note: NRTL certification is not necessary due to 24VDC safe device
Warranty	One-year limited warranty with lifetime support (rusted and damaged parts due to improper storage condition or maintenance are not covered by warranty)
Application Notes	It can be used as a jig for compressing pressure adjustable split test cell, please click the picture in below for details: It also can be used for pressing pellet via < 0.5" diameter die in the glove-box under both N2 and Ar gas The press machine can be put into the glove-box through the air-lock chamber
Operation Video
Net Weight	25 kg (55 lbs)
Shipping Weight	45 kg (100 lbs)
