375 Series Panel Mount / Benchtop Gauge Controller

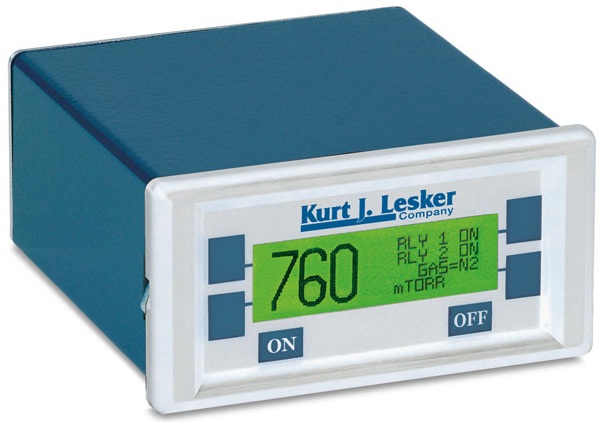

Lesker 375 Series Panel Mount / Benchtop Gauge Controller

These Kurt J. Lesker gauge tubes and controllers are ideal for new applications or as direct "drop-in", low-cost equivalents to the Convectron^® brand of Granville-Phillips gauges.

Features

• Wide measuring range lets you monitor your vacuum system from 10^-4 to 1,000 Torr (10^-4 to 1,333 mbar) with a single gauge
• Performance identical to existing Convectron gauges
• Less prone to damage from mechanical shock or vibration than Convectron tubes
• Less outgassing and faster response to pressure changes than Convectron tubes
• Includes two set points, user-selectable analog output, and RS-232/485 interfaces
• Analog output is configurable as a non-linear S-curve, log-linear, or user-scalable linear
• Space-saving 1/8 DIN panel mount housing which can also be used as a benchtop unit
• Powered by universal 100–240 VAC or 12–30 VDC
• Controllers feature universal power and are CE marked

Lesker 375 Series Panel Mount / Benchtop Gauge Controller
