1650C Grade Kanthal GLOBAR-SG SiC Heating Element( 6" heating zone x 374mm L ) - EQ-1600sp-HEL-6-374-LD

Kanthal GLOBAR^® Silicon Carbide ( SiC ) Heating Elements are used in applications ranging in temperature from  400^oC up to 1600 ^oC in both air and controlled atmospheres.

Descriptions:

• Kanthal GLOBAR-SG Silicon Carbide made in Swiden
• Surface Temperature, Max.  1650 ^oC
• Continuous working temperature 1600 ^oC

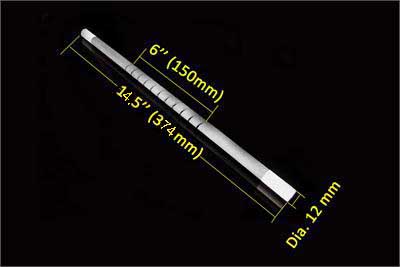

• Dimension:
  Please click underline below to download detail specification data sheet
  • 12 mm dia.
  • 6" ( 150 mm length ) heating zone.
  • 14.5" (374mm length)overall Length

 Specification data sheet

• Click to view the Installation of the SiC rods [MTI PRODUCThttp://www.mtixtl.com/heaterinstallationgsl-1600x.aspx" style="font: 9pt Tahoma, Geneva, sans-serif; color: rgb(0, 51, 204); text-decoration: none;">
• Please notice,  For SIC heating element, it is a consumable part, and not covered by warranty ,and usually its service life is one-year.
