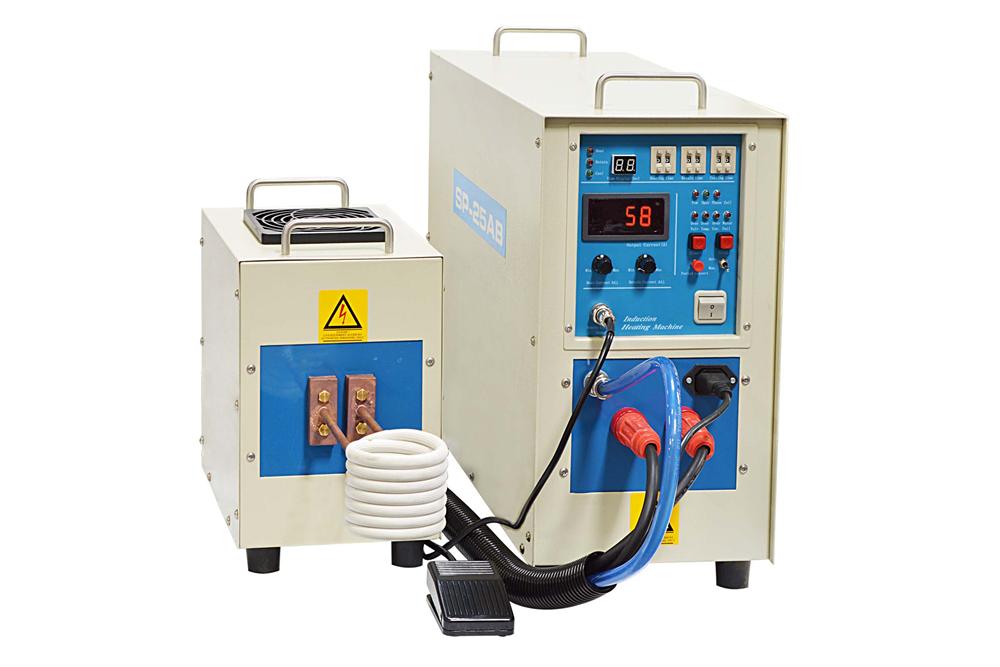

15 KW (30-80KHz) Desktop Induction Heater, (220V, 3 Phases) w/ Timer Control - SP-25AB

0.0/5 rating (0 votes)

Description

SP-25AB is a kind of high-frequency heating equipment, which features the latest inverting technology so as to make itself light and convenient. Its 15kW Induction Heater is designed for the material research lab to quickly melt and perform heat treating to metallic materials up to 2kg.
The product is updated from EQ-SP-25AB on 9/23/2014

SPECIFICATIONS:
Working Voltage
208-240V AC, 50/60 Hz, Three Phases (380V or 440V, Three Phases are available upon request)
Max. Input Current
  • 42 A  (Min. 50A breaker required)
  • Power cable included (Plug is not included)
Output Frequency 30-80 kHz
Heating Current 200-800 A
Max. Input Power 15 KW
Duty Cycle 80%
Max. Sample Weight 2 kg
Timer Control
  • Automatic timer control or  Manual control selectable
    • Manual Control: by Foot Pedal
    • Automatic Heating Time: 1-99 Seconds
    • Automatic Dwell Time: 1-99 Seconds
    • Automatic Cooling Time: 1-99 Seconds
Temperature Control Optional
  • One temperature control port built-in back
  • In order to control temperature control by thermocouple for this induction unit, please order the temperature controller EQ-MTC-808
  • You may also to consider order the complete system EQ-SP-25TC  from us
  •
Water Cooling
  • Flowrate: >10 L/Min
  • Pressure: ≥0.2 MPa (29 Psi)
  • Tap water is acceptable, but using a Recirculating Water Chiller is highly recommended. Please click here to order separately
  • Protection: Overpressure and over-temperature switch
Induction Coil
 2 pcs Induction Coil total,
Display The digital display shows output power and current
Product Dimensions 18"(L) x 8"(W) x 17"(H)
Warranty One Year limited warranty with lifetime support (Consumable parts like coils, fittings and clamps are not covered by the warranty)
Compliance
    • NRTL or CSA certification is available upon request at extra cost, please contact our sales representatives for a quote
Operation Manual
Application Notes

Melting
Sintering
Annealing
Heat treatment
Quenching
  • The heater will shut down if over output occurs. Pls reduce coil cycle number to keep the heater operating under Max power
  • Melting time and temperature are related to materials, the crucible, refractory insulation, etc.
  • You may melt metal samples in a vacuum using a 60mm dia half-open quartz tube with a vacuum flange/valve. Please click the picture below for details on how to set up the vacuum tube
  • For induction heating in the air or under the glove box, please contact MTI for the design below.

Warning
  • To prevent internal circuitry damage:
    • Never allow the inductive current to exceed 800 A when the unit is in use.
    • The maximum time duration for running the unit at the 600~800 A working current range should not exceed 60 seconds.
Net Weight 28 kg (62 lbs)
Shipping Dimensions 40"(L) x 32"(W) x 35"(H)
Shipping Weight (Pounds) 165 lbs
