Hinged Vacuum Sealing Assembly with Flange Support for 80 mm dia Tube Furnace - EQ-FL-80KF25-HG

0.0/5 rating (0 votes)

Description

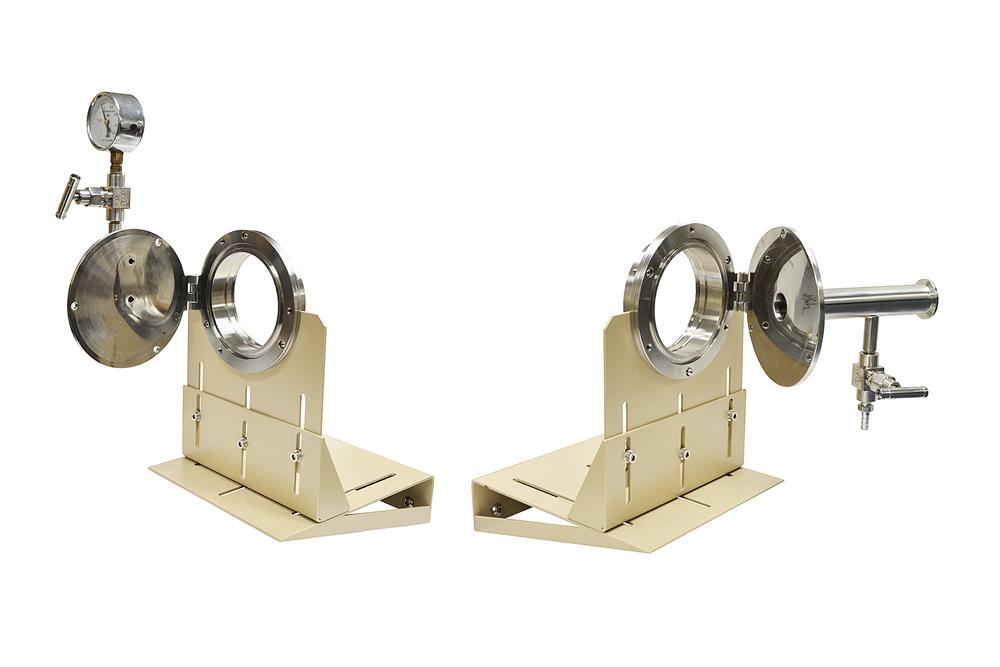

This is a pair of hinged vacuum sealing assembly with flange support for 80mm vacuum tube furnace to seal both ends of OD 80-81 mm tube without any welding and gluing.

SPECIFICATIONS

Features
  • Seal tube by tightening screws on the flange without any welding or gluing.
  • Excellent for any type of tubing: ceramic, glass, quartz and steel pipe.
  • Installation requires drilling holes on the furnace casing to mount the flange support.
  • Made of Stainless Steel (SS304)  with high-temperature silicon O-rings on each flange.
  • Delicate metal support allows for both vertical and horizontal adjustment
  • The openable flange is designed for sample easily loading/unloading.
  • Designed for MTI Dual Zone Split Tube Furnace with Vacuum Flanges & 4" Quartz Tube - OTF-1200X-4-II.
Descriptions
  • The left end comes with a hinged flange with a barbed valve, 1/4" feedthrough and pressure gauge.
  • Mechanical Pressure Gauge is available as an alterlative of regular gauge.
  • The right end comes with a hinged flange with a barbed valve and KF25 vacuum port.
  • KFD25 angle valve may require for connecting the vacuum port to a vacuum pump.  Please choose the KF25 angle valve at the related product below.
Vacuum level
Dimension  Click the image to the left for dimensions details.

Application Note
  • Place the o-ring on the notch of the hinged flange.
  • A tube block is required behind each flange to avoid the silicone O-rings melting.
  • In the parts diagram on the left, the dia# is 80 for this product.
  • Tube block is available in related products below.
  • Please do not over tighten the three hex screws on the flanges to avoid overpressure incidents. The recommended torque is 35~40 inch-lbs.
  • For liability considerations, MTI does not recommend or endorse the use of any toxic, flammable or corrosive gases with our flange assemblies. Please contact us with any concerns.
